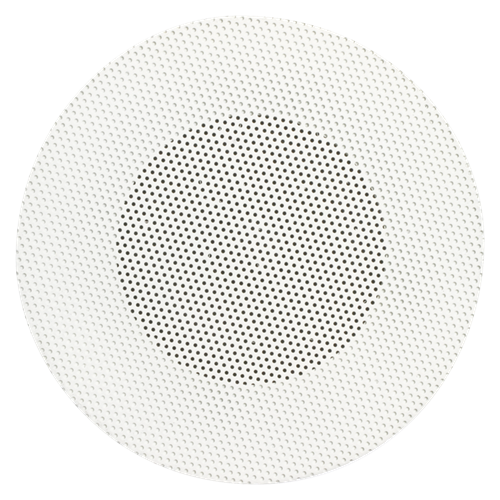

4\" Loudspeaker Combo Packages FC104T72/T710-4
Attractive BT710-4 loudspeaker assemblies combine the sound performance of a full range 4\" high compliance loudspeaker with the job site convenience and economy of a factory-assembled loudspeaker, transformer and baffle. Model incorporates the popular Atlas Sound FC104 high performance loudspeaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeak-ers in distributed systems. Loudspeaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 70.7/25V trans-former and round with screw mount. BT710-4 package are shipped assembled and ready for installation.
| Depth | 2 1/4\" (5.715 cm) |
| Diameter | 4\" (10.16 cm) |
| Shipping Weight | 3.33 lbs (1.51 kgs) |
| Frequency Response | 100Hz - 10kHz (+/- 1.5dB) |
| Power Taps | 70.7V/25V |
| Speaker Type | High Compliance |
| Dispersion | 135°/ -6dB, 2kHz |
| Sensitivity | 94dB (at 1W / 1M) |
