Details

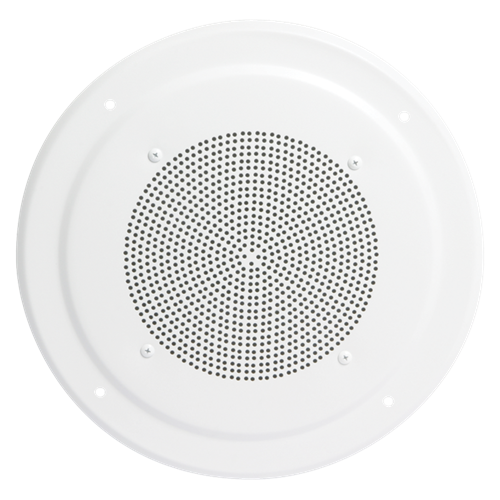

Pre-assembled baffle, 5 oz Loudspeaker 25V-5W xfmr/M222W
C5A package pre-assembled with 25V transformer and model M222W contoured aluminum baffle. Perfect for health care applications
- 25 Volt transformer offers .5, 1, 2, & 4 watt taps
- Aluminum contoured baffle is painted white
- Dual cone type driver
- Factory-Assembled Loudspeaker Packages Reduce Installation Time and Expense
- Mounts to standard tile bridges, enclosures, and plaster rings
- Sensitivity 97dB 1w1m
- Speaker package includes driver, transformer, baffle, and hardware bag
- UL1480 & UL2043 listed
| Depth | 2 5/8\" (6.6675 cm) |
| Diameter | 8\" (20.32 cm) |
| Shipping Weight | 3.17 lbs (1.44 kgs) |
| Frequency Response | 100 Hz - 10 kHz, ± 1.5dB |
| Power Taps | 25V |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Sensitivity | 97dB Peak, 94dB Average |
