Details
Pre-assembled baffle, 5 oz Loudspeaker 70.7V-5W xfmr/62-8

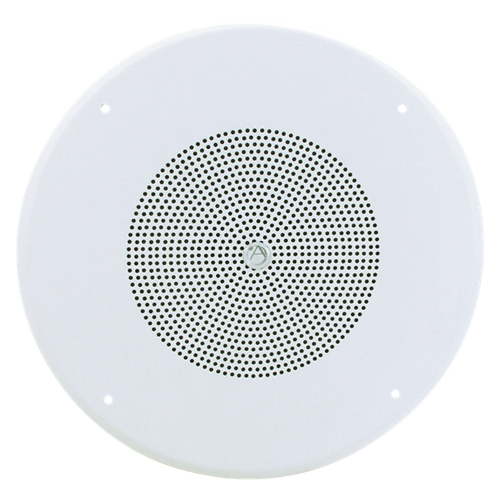

Model FD70W is a cost effective assembly that include high-quality 8\" loudspeaker, 70.7V transformer and screw type grill. Unit is shipped assembled, ready for installation.
The FD70W features a conventional cone design loudspeaker with a 1\" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.
Speaker / transformer is factory installed on a 62-8 style baffle.
- Attractive white finish
- Easy to order speaker/transformer/grill assembly
- Mounts to standard tile bridges, enclosures, and plaster rings
- Suited for any commercial paging or BGM application
Depth | 2 5/8\" (6.6675 cm) |
Diameter | 8\" (20.32 cm) |
Shipping Weight | 3.67 lbs (1.66 kgs) |
Frequency Response | 100 Hz - 10 kHz, ± 1.5dB |
Power Taps | .5, 1, 2, 5 |
Speaker Type | Treated Paper |
Dispersion | 105° |
Sensitivity | 97dB Peak, 94dB Average |
