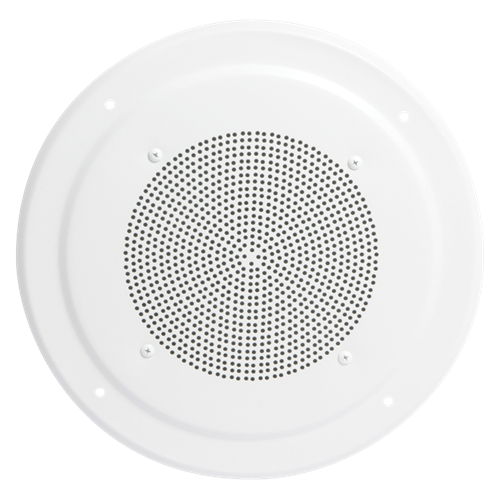

Pre-assembled baffle, 5 oz Loudspeaker 25/70.7V-4W xfmr/M222W
Model FD70M222W is a cost effective assembly that include high-quality 8\" loudspeaker, 70.7V transformer and screw type grill.
The FD70M222W features a conventional cone design loudspeaker with a 1\" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.
Speaker / transformer is factory installed on a M222W baffle featuring a contoured trim ring. Construction is of one-piece .030 aluminum. Finish is textured white.
| Depth | 2 5/8\" (6.6675 cm) |
| Diameter | 8\" (20.32 cm) |
| Shipping Weight | 3.17 lbs (1.44 kgs) |
| Frequency Response | 50 Hz - 18 Khz, ± 1.5dB |
| Power Taps | 25/70.7V |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Sensitivity | 97dB Peak, 94dB Average |
