Details
Pre-assembled baffle, 5 oz Loudspeaker 25/70.7V-4W xfmr/62-8

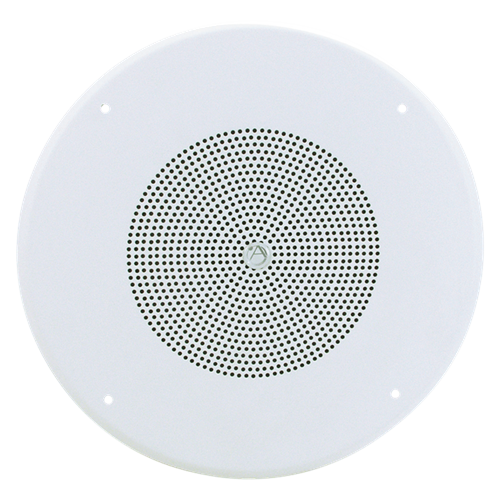

Model FD72W is a cost effective assembly that include high-quality 8\" loudspeaker, 70.7V/25V transformer and screw type grill.
The FD72W features a conventional cone design loudspeaker with a 1\" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.
Speaker / transformer is factory installed on a 62-8 style baffle.
- Attractive white finish
- Easy to order speaker/transformer/grill assembly
- Mounts to standard tile bridges, enclosures, and plaster rings
- Suited for any commercial paging or BGM application
| Depth | 2 5/8\" (6.6675 cm) |
| Diameter | 8\" (20.32 cm) |
| Shipping Weight | 3.67 lbs (1.66 kgs) |
| Frequency Response | 100 Hz - 10 kHz, ± 1.5dB |
| Power Taps | .5 , 1, 2, 4 |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Sensitivity | 97dB Peak, 94dB Average |
