Details
Pre-assembled baffle, 10 oz Loudspeaker 25V-5W xfmr/62-8

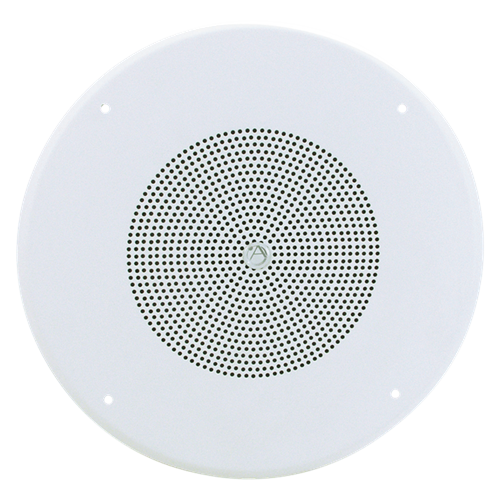

HD25W is a cost-effective 8\" dual-cone loudspeaker assembly which delivers wide frequency response for general purpose voice and music reproduction.
Unit is shipped complete with grille and 25, 70.7 or 25/70.7-volt transformer factory wired to reduce field installation time and expense.
HD25W model has a power rating of 25 watts and is standard with the industry favorite Model 62-8 grille.
Model will accept optional protective enclosures and mounting accessories to meet installation and code requirements.
- 10 oz. Magnet offers lower frequency response
- 25 Volt transformer offers .5, 1, 2, & 4 watt taps
- Baffle is industry standard 62-8 with baked on white epoxy enamel finish
- Dual cone type driver
- Factory-Assembled Loudspeaker Packages Reduce Installation Time and Expense
- Mounts to standard tile bridges, enclosures, and plaster rings
- Sensitivity 97dB 1w1m
- Speaker package includes driver, transformer, baffle, and hardware bag
- UL1480 & UL2043 listed
| Depth | 2 7/8\" (7.3025 cm) |
| Diameter | 8\" (20.32 cm) |
| Shipping Weight | 4.50 lbs (2.04 kgs) |
| Frequency Response | 100 Hz - 10 kHz, ± 1.5dB |
| Power Taps | 25V |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Sensitivity | 97dB Peak, 94dB Average |
