Details

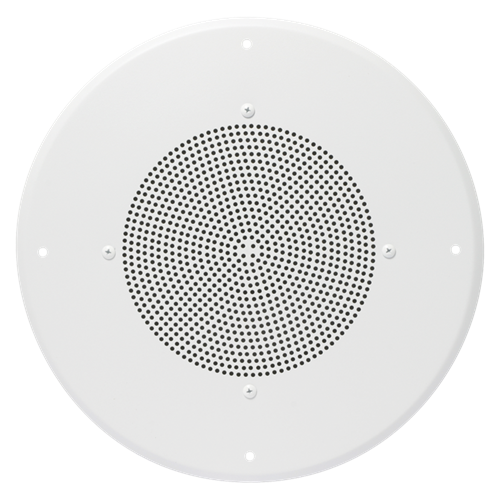

Pre-assembled baffle, 10 oz Loudspeaker 70.7V-5W xfmr/62-8
Model HD70W is a cost effective assembly that include high-quality 8\" loudspeaker, 70.7V transformer and screw type grill. Unit is shipped assembled, ready for installation.
The HD70W features a conventional cone design loudspeaker with a 1\" diameter voice coil to reproduce voice and music with excellent response and superb overall performance. The HD70W includes a factory mounted 70V transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100 Hz to 10 kHz. Speaker / transformer is factory installed on a 62-8 style baffle.
This industry favorite is aesthetically pleasing and constructed of 24-gauge CRS finished in textured white epoxy.
- Attractive white finish
- Easy to order speaker/transformer/grill assembly
- Suited for any commercial paging or BGM application
| Depth | 2 7/8\" (7.3025 cm) |
| Diameter | 8\" (20.32 cm) |
| Shipping Weight | 4.50 lbs (2.04 kgs) |
| Frequency Response | 100 Hz - 10 kHz, ± 1.5dB |
| Power Taps | .5, 1, 2, 5 |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Sensitivity | 97dB Peak, 94dB Average |
