Pre-assembled baffle, 10 oz Loudspeaker 25/70.7V-4W xfmr/62-8

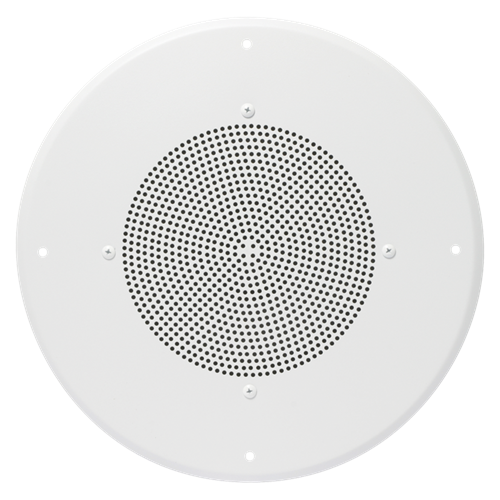

Model HD72W is a cost effective assembly that include high-quality 8\" loudspeaker, 70.7V/25V transformer and screw type grill. Unit is shipped assembled, ready for installation.
The HD72W features a conventional cone design loudspeaker with a 1\" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.
The HD72W includes a factory mounted dual voltage transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100 Hz to 10 kHz. Speaker / transformer is factory installed on a 62-8 style baffle.
| Depth | 2 7/8\" (7.3025 cm) |
| Diameter | 8\" (20.32 cm) |
| Shipping Weight | 4.50 lbs (2.04 kgs) |
| Frequency Response | 100 Hz - 10 kHz, ± 1.5dB |
| Power Taps | 25/70.7V |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Sensitivity | 97dB Peak, 94dB Average |
