Details

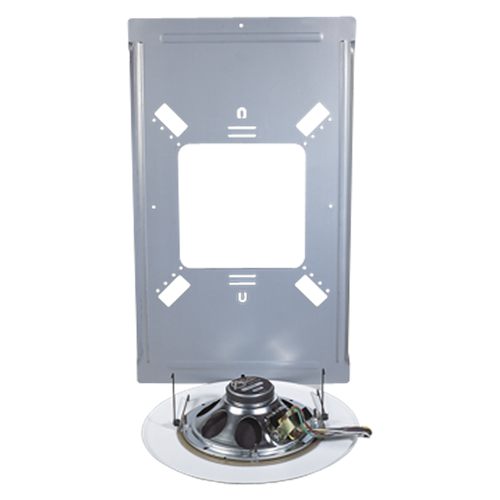

Pre-assembled baffle, 5 oz. Loudspeaker, 25/70.7V-4W xfmr/T62-8
The TFD72WC is a cost-effective 8\" dual-cone loudspeaker assembly which delivers wide frequency response for general purpose voice and music reproduction.
Unit is shipped complete with torsion mount grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense.
The TFD72WC will accept optional protective enclosures and mounting accessories to meet installation and code requirements.
| Depth | 2 5/8\" (6.6675 cm) |
| Diameter | 8\" (20.32 cm) |
| Shipping Weight | 4.00 lbs (1.81 kgs) |
| Frequency Response | 100 Hz - 10 kHz, ± 1.5dB |
| Power Taps | .25, .5, 1, 2, 5 |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Sensitivity | 96dB Peak, 93dB Average |
