Details

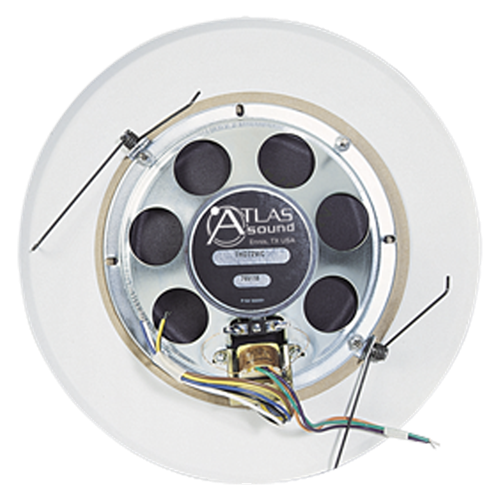

Pre-assembled baffle, 10 oz. Loudspeaker, 25/70.7V-4W xfmr/T62-8
THD72WC are cost-effective 8\" dual-cone loudspeaker assemblies which deliver wide frequency response for general purpose voice and music reproduction. Units are shipped complete with grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense. HD Series models have a power rating of 25 watts and are mounted to a T62-8 torsion mount baffle. It will accept optional protective enclosures and mounting accessories to meet installation and code requirements
- Equipped with 25, 70.7, 25/70.7V Transformer
- EZ Versions Available with Pre-Mounted Brackets and Rails for Quick Assembly in Standard 2 x 4 Suspended Tile Ceilings
- Installation Time and Expense with Pre-Assembled Loudspeaker, 15 or 25W Transformer & Baffle Combinations
| Depth | 2 7/8\" (7.3025 cm) |
| Diameter | 8\" (20.32 cm) |
| Shipping Weight | 4.50 lbs (2.04 kgs) |
| Frequency Response | 100 Hz - 10 kHz, ± 1.5dB |
| Power Taps | 25/70.7V |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Sensitivity | 97dB Peak, 94dB Average |
